  • 1206 SMD RGB LED

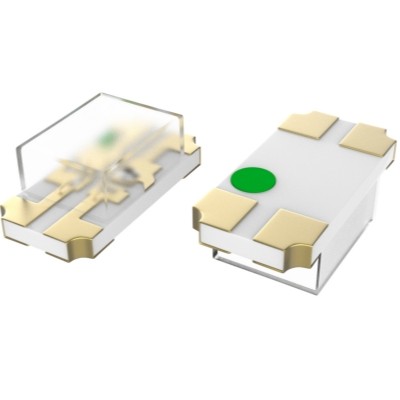

1206 SMD RGB LED

  • Product Item : 1206RGBNP4
  • Category: 1206 SMD LED
  • Package: SMT package 1206
  • Color: RGB
  • Intensity:180~280mcd/R 350~450mcd/G 350~450mcd/B
  • Wavelength:620~625nm/R 512~525nm/G 460~470nm/B
  • INQUIRY   EMAIL

Descriptions
SMD LED lamps from ArkTech are available in miniature sizes and special configurations for automated PC board assembly and space-sensitive applications.  SMD RGB LED lamps are suitable for use in a wide variety of electronic equipment, including cordless and cellular phones, notebook computers, network systems, home appliances, and indoor signboard applications.


Color Wavelength Lens type Intensity View Angle VF(V) IF(mA)

RGB

620~625nm/R

512~525nm/G

460~470nm/B

water Clear


180~280mcd/R

350~450mcd/G

350~450mcd/B

120°

1.7~2.2V/R

2.7~3.5V/G

2.7~3.5V/B

20mA


Features
3.2 mm x 1.6 mm SMD LED, 1.1 mm thickness
SMT package, colorless diffused resin
Low power consumption
Wide viewing angle.
Package: 4000 pcs / reel
MSL (Moisture Sensitivity Level): 3
Compatible with automatic placement equipment.
Compatible with reflow solder process.
ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
Halogen-free
RoHS compliant

APPLICATIONS
Lighting: In decorative lighting, architectural lighting, and stage lighting.
Displays: In LED displays, such as large outdoor screens, indoor video walls, and electronic signage.
Home Automation: In smart home lighting systems.
Consumer Electronics: In various consumer electronic devices, such as smartphones, tablets, and televisions.

The versatility and ability to produce a wide range of colors make them suitable for various industries and creative projects.

ATTENTION
Observe precautions for handling electrostatic discharge sensitive devices. Electrostatic discharge and power surge could damage the LEDs.
It is recommended to use a wrist band or anti-electrostatic glove when handling the LEDs. All devices, equipments and machineries must be electrically grounded.

If you need other SMD LED, please check out our other products.
