  • 0.36 inch two digits

0.36 inch two digits


Features

- High intensity and reliability

-High brightness, Low power requirement

-IC compatible , Easy assembly

- RoHS compliant, Pb free

-Wide View Angle

-Standard: black surface, white segment

Part No. Color Wavelength/CT Polarity Size Digits VF(V) IF(mA)
R210363A
Red 620~630nm CA/CC 0.36" Two 1.9~2.2V 20mA
Y210363A
Yellow 585~595nm CA/CC
0.36"
Two
1.9~2.2V
20mA
B210363A
Blue 455~465nm
CA/CC
0.36"
Two
2.8~3.4V 20mA
YG210363A
Yellowlish Green 565~575nm
CA/CC
0.36"
Two
1.9~2.2V
20mA
PG210363A
Pure Green 520~525nm
CA/CC
0.36" Two
2.8~3.4V
20mA
O210363A
Orange 600~610nm
CA/CC
0.36"
Two
1.9~2.2V
20mA
W210363A
White 1800~20000K CA/CC
0.36" Two
2.8~3.4V
20mA

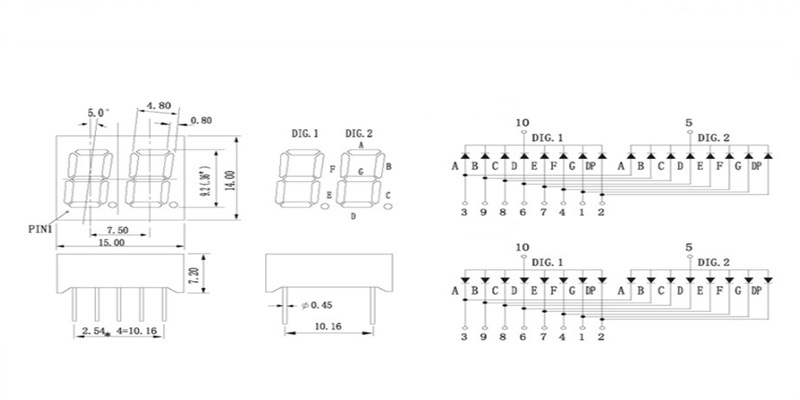

Parameters

(1) Digit: double.
(2) The height of glow surface:0.36 inches.
(3) Total PINs:10pins.
(4) Public feet:5 10.
(5) Dimensions:15.0x14.0x7.2mm.
(6) Glow color:bright red/yellow/yellow/amber/blue/white/pure green.
(7) Reflected cavity surface color:black/gray.
(8) Epoxy color:white/red/green/blue/yellow.
(9) Polarity:common anode/Common Cathode.
(10) Using temperature range:-20 to 80 degrees Celsius.

If you need other 7 segment LED display, please check out our other products.
