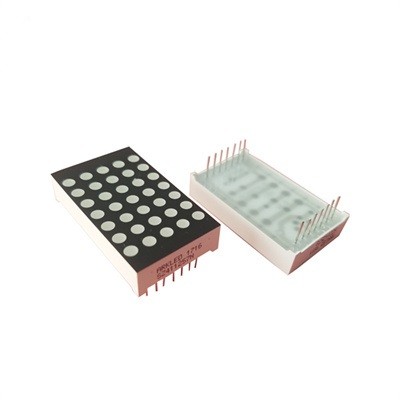

LED matrix 5X7 1.2 inch


Features

- High intensity and reliability

-High brightness, Low power requirement

-IC compatible , Easy assembly

- RoHS compliant, Pb free

-Wide View Angle

-Standard: black surface, white segment

Part No. Color Wavelength/CT Polarity Size Dots VF(V) IF(mA)
D4111257A
Red 620~630nm CA/CC 1.2" 5*7 1.9~2.2V 20mA
Y311257A
Yellow 585~595nm CA/CC
1.2"
5*7
1.9~2.2V
20mA
B311257A
Blue 455~465nm
CA/CC
1.2"
5*7
2.8~3.4V 20mA
YG311257A
Yellowlish Green 565~575nm
CA/CC
1.2"
5*7
1.9~2.2V
20mA
PG311257A
Pure Green 520~525nm
CA/CC
1.2" 5*7
2.8~3.4V
20mA
O311257A
Orange 600~610nm
CA/CC
1.2"
5*7
1.9~2.2V
20mA
W311257A
White 1800~20000K CA/CC
1.2" 5*7
2.8~3.4V
20mA

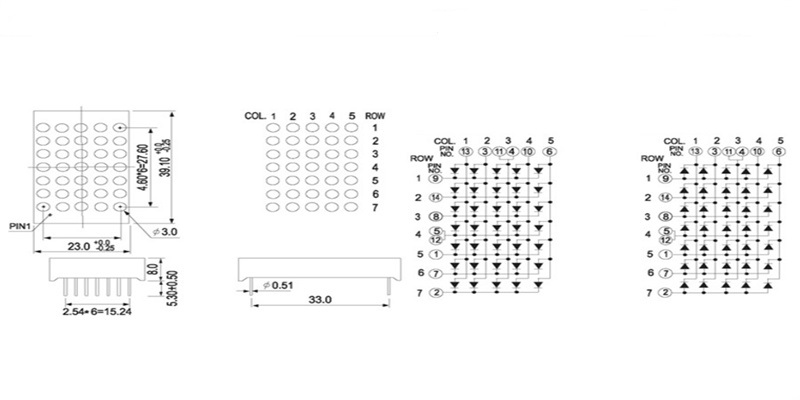

Parameter

(1) Digit:multi.
(2) The height of glow surface:1.2 inches.
(3) Total PINs: 14pins.
(4) Public feet:no
(5) Dimensions:23.0(-0.25)x39.1(-0.25)x8.0mm.
(6) Glow color:bright red/yellow/yellow/amber/blue/white/pure green.
(7) Reflected cavity surface color:black/gray.
(8) Epoxy color:white/red/green/blue/yellow.
(9) Polarity:common anode/Common Cathode.
(10) Using temperature range:-20 to 80 degrees Celsius.

If you need other dot matrix LED display, please check out our other products.
