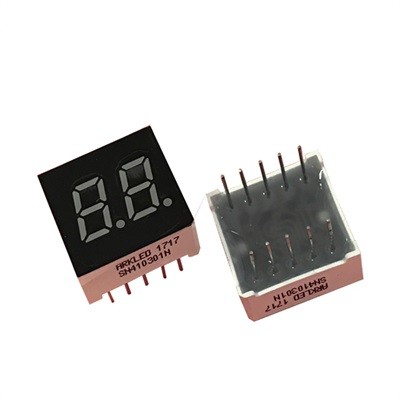

0.3 inch two digits

Product Item : R210563A
Category： Dual digits
7 segment led display
red color
high intensity
small size
INQUIRY EMAIL

Features

- High intensity and reliability

-High brightness, Low power requirement

-IC compatible , Easy assembly

- RoHS compliant, Pb free

-Wide View Angle

-Standard: black surface, white segment

Part No.	Color	Wavelength/CT	Polarity	Size	Digits	VF(V)	IF(mA)
R21033A	Red	620~630nm	CA/CC	0.3"	Two	1.9~2.2V	20mA
Y21033A	Yellow	585~595nm	CA/CC	0.3"	Two	1.9~2.2V	20mA
B21033A	Blue	455~465nm	CA/CC	0.3"	Two	2.8~3.4V	20mA
YG21033A	Yellowlish Green	565~575nm	CA/CC	0.3"	Two	1.9~2.2V	20mA
PG21033A	Pure Green	520~525nm	CA/CC	0.3"	Two	2.8~3.4V	20mA
O21033A	Orange	600~610nm	CA/CC	0.3"	Two	1.9~2.2V	20mA
W210563A	White	1800~20000K	CA/CC	0.3"	Two	2.8~3.4V	20mA

Parameters

(1) Digit: double.
(2) The height of glow surface：0.3 inches.
(3) Total PINs：10pins.
(4) Public feet：5 10.
(5) Dimensions：15.5x15.0x7.2mm.

(6) Glow color：bright red/yellow/yellow/amber/blue/white/pure green.
(7) Reflected cavity surface color：black/gray.
(8) Epoxy color：white/red/green/blue/yellow.
(9) Polarity：common anode/Common Cathode.
(10) Using temperature range：-20 to 80 degrees Celsius.

If you need other 7 segment LED display, please check out our other products.
