  • 0603 SMD LED PURE WHITE COLOR

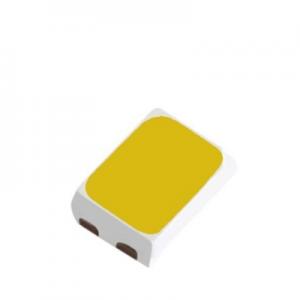

0603 SMD LED PURE WHITE COLOR

  • Product Item : A0603PWNB
  • Category: 0603 SMD LED
  • Package: SMT package 0603
  • Color:Pure White
  • Chip:AlGaN
  • Luminous Intensity: 400mcd
  • INQUIRY   EMAIL

Descriptions
SMD LED lamps from ArkTech are available in miniature sizes and special configurations for automated PC board assembly and space-sensitive applications. 0603 LED is suitable for use in a wide variety of electronic equipment. It is commonly used in indoor and outdoor lighting, such as display, cameras, televisions, etc.




Part No. Color Wavelength/CT Lens type Intensity View Angle VF(V) IF(mA)
A0603PWNB
Pure White Color 6000~7000K Yellow diffused 300~600mcd 120°
2.9~3.1V
20mA


Features
1.6 mm x 0.8 mm SMD LED, 0.6 mm thickness
SMT package, colorless diffused resin
Low power consumption
Wide viewing angle.
Package: 4000 pcs / reel
MSL (Moisture Sensitivity Level): 3
Compatible with automatic placement equipment.
Compatible with reflow solder process.
ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
Halogen-free
RoHS compliant

APPLICATIONS

Backlight Status indicator for keypad and keyboard.
Home and smart appliances
Wearable and portable devices
Healthcare applications


ATTENTION
Observe precautions for handling electrostatic discharge sensitive devices. Electrostatic discharge and power surge could damage the LEDs.
It is recommended to use a wrist band or anti-electrostatic glove when handling the LEDs. All devices, equipments and machineries must be electrically grounded.

If you need other SMD LED, please check out our other products.
