  • 2mm Flat Top Green Color LED

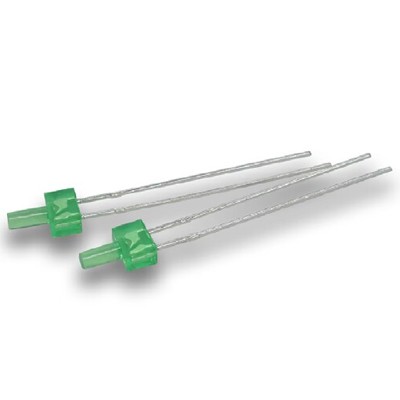

2mm Flat Top Green Color LED



Part No. Color Wavelength/CT Lens type Intensity View Angle VF(V) IF(mA)
LFD2G03L1
Green 574nm Diffused Green 40-80mcd 50° 2.1~2.5V 20mA

FEATURES
 Low power consumption
 Long life, solid state reliability
 Available on tape and reel
 RoHS compliant
APPLICATIONS
 Status indicator
 Illuminator
 Signage applications
 Decorative and entertainment lighting
 Commercial and residential architectural lighting

DESCRIPTION
 The Green source color devices are made with AlGaInP on GaAs substrate Light Emitting Diode
 Electrostatic discharge and power surge could damage the LEDs
 It is recommended to use a wrist band or anti-electrostatic glove when handling the LEDs
 All devices, equipments and machineries must be electrically grounded

 All design applications should refer to ArkTech through hole LED application notes.
