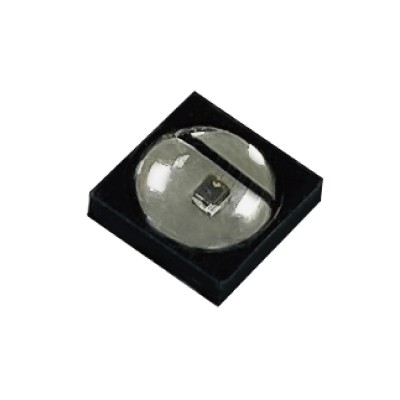

3.5*3.5mm Surface Mount Emitting Diode LED
- Product Item : LID35G03L1
- Category： Infrared LED and Detector
- Wavelength λd (nm):850nm
- Reverse Light Current (IL):10
- Viewing Angle (deg.):120°
- Forward Current IF (mA):350mA
| Part No. |
Wavelength λd (nm) |
Radiation Intensity Ie (mW/sr) |
Viewing Angle (deg.) |
Reverse Light
|
Forward Current IF (mA) |
|
LID35G03L1 |
850nm |
250 |
120° |
10 |
350mA |
FEATURES
Top view, Wide view angle
EIA STD package
Compatible with automatic Pick & Place equipment
Compatible with IR Reflow soldering and TTW soldering
Meet RoHS Green Product
Note:
All dimensions are in millimeters
Tolerance is ± 0.15mm (.004") unless otherwise noted
