  • 0201 SMD LED BLUE Color

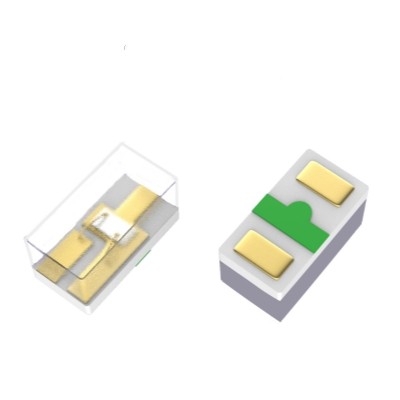

0201 SMD LED BLUE Color

  • Product Item : BL0201B001
  • Category: 0201 SMD LED
  • Package:SMT Package 0201
  • Color:BLUE
  • Intensity:80~90mcd
  • View Angle:120°
  • INQUIRY   EMAIL

Descriptions
SMD LED lamps from ArkTech are available in miniature sizes and special configurations for automated PC board assembly and space-sensitive applications. These SMD LED lamps are suitable for use in a wide variety of electronic equipment, including cordless and cellular phones, notebook computers, network systems, home appliances, and indoor signboard applications.


Color Wavelength/CT Lens type Intensity View Angle VF(V) IF(mA)
BLUE 460~470NM WATER CLEAR 80~90mcd 120°
2.5~3.5V
5mA


Features
0.65 mm x 0.35 mm SMD LED, 0.4 mm thickness
SMT package, colorless diffused resin
Low power consumption
Wide viewing angle.
Package: 4000 pcs / reel
MSL (Moisture Sensitivity Level): 3
Compatible with automatic placement equipment.
Compatible with reflow solder process.
ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
Halogen-free
RoHS compliant

APPLICATIONS
Backlight Status indicator for keypad and keyboard.
Home and smart appliances
Wearable and portable devices
Healthcare applications
ATTENTION
Observe precautions for handling electrostatic discharge sensitive devices. Electrostatic discharge and power surge could damage the LEDs.
It is recommended to use a wrist band or anti-electrostatic glove when handling the LEDs. All devices, equipments and machineries must be electrically grounded.

If you need other SMD LED, please check out our other products.
