  • 1808 SMD YELLOW GREEN LED

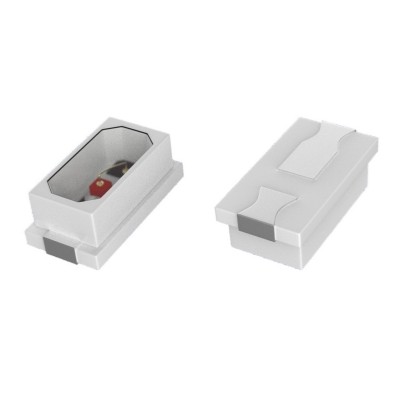

1808 SMD YELLOW GREEN LED

  • Product Item : YG1808YNB
  • Category: 1808 SMD LED
  • Package: SMT package1808
  • Color:YELLOW GREEN
  • Intensity: 255~355mcd
  • Wavelength:580~590nm
  • INQUIRY   EMAIL

Descriptions
SMD LED lamps from ArkTech are available in miniature sizes and special configurations for automated PC board assembly and space-sensitive applications. SMD LED 1808 are suitable for use in a wide variety of electronic equipment, including cordless and cellular phones, notebook computers, network systems, home appliances, and indoor signboard applications.


Color Wavelength/CT Lens type Intensity View Angle VF(V) IF(mA)

YELLOW GREEN

565~575NM WATER CLEAR 60~95mcd 120°
1.9~2.2V
5mA


Features
1.8 mm x 0.8 mm SMD LED, 0.5 mm thickness
SMT package, colorless diffused resin
Low power consumption
Wide viewing angle.
Package: 4000 pcs / reel
MSL (Moisture Sensitivity Level): 3
Compatible with automatic placement equipment.
Compatible with reflow solder process.
ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
Halogen-free
RoHS compliant

APPLICATIONS
Backlight Status indicator for keypad and keyboard.
Home and smart appliances
Wearable and portable devices
Healthcare applications
ATTENTION
Observe precautions for handling electrostatic discharge sensitive devices. Electrostatic discharge and power surge could damage the LEDs.
It is recommended to use a wrist band or anti-electrostatic glove when handling the LEDs. All devices, equipments and machineries must be electrically grounded.
